电永磁吸盘控制器

产地: 浙江省宁波市
规格: 可按照要求定做
品牌: Realmagnetic
销售地区: 全球
认证: CE

加入询盘篮

详细描述
交易条件 供应能力
付款方式: T/T L/C 生产率: 月产量500套
最小起订量: 1 套 包装: 纸箱
运输: 物流托运 交货期限: 15天左右

Description:描述:
For electro-permanent magnetic chucks this control unit is supplying the current impulse for switching the chuck on and off.
这个控制器是与电永磁吸盘配套的,用来提供电流脉冲,来开关电永磁吸盘。
The integrated, microprocessor controlled, pole reversing function demagnetizes the magnetic system and also eliminates the remanence magnetism system and also eliminates the remanence magnetism in the workpiece.
集成、微处理器控制,磁极的反向功能消磁,同时消除了吸盘与加工工件的磁性。
Due to this the workpieces can easily be released from the chuck, any chips are easy to remove, and, even more important, separate demagnetization of the workpiece is no longer required.
由于工件可轻松的从吸盘上卸下,碎片可轻松移动,更重要的是,工件不需要退磁。
When control unit and magnetic chuck are ordered as a set, it will be programmed with the most optimum settings in time and function.
控制器与吸盘是成套定购的,控制器在时间和功能上可以做*优化的设置编程。
The control unit continuously monitors the main supply voltage/current, its outputs, all connecting cables and magnet coils.
控制器连续检测,*主要是提供电压/电流,它输出,所有的连接电缆与磁性线圈。

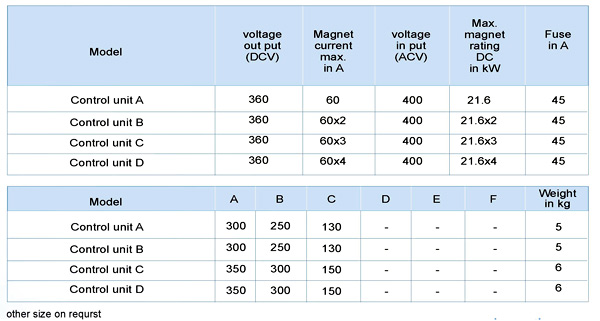

Technical data:技术数据:
Maximum ambient temperature:45℃
*高环境温度:45℃
Input voltage: 230/400VAC
输入电压:230/400VAC
Frequency: 50/60 HZ
频率:50/60 HZ
Cycle time for electro-permanent magnets:>3min
电永磁的循环时间:>3分钟
Smaller cycles on request.
周期要求比较小。
